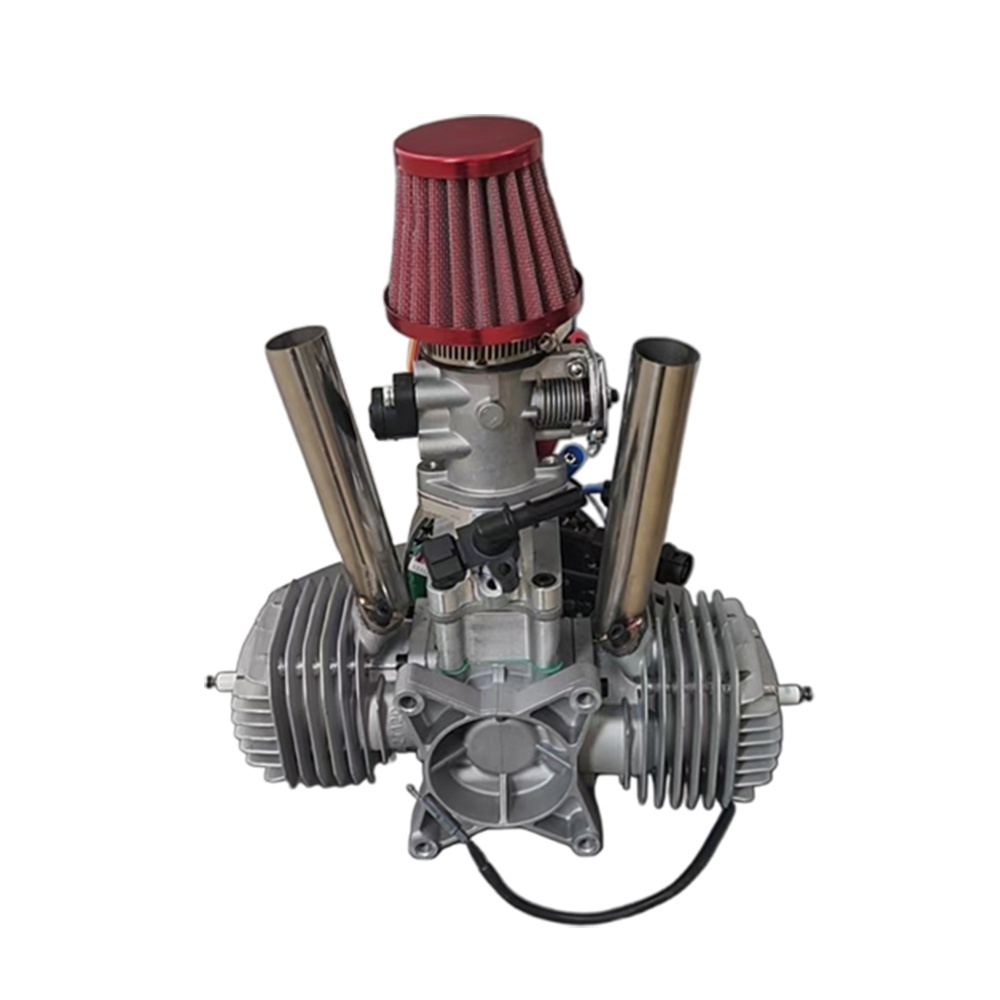

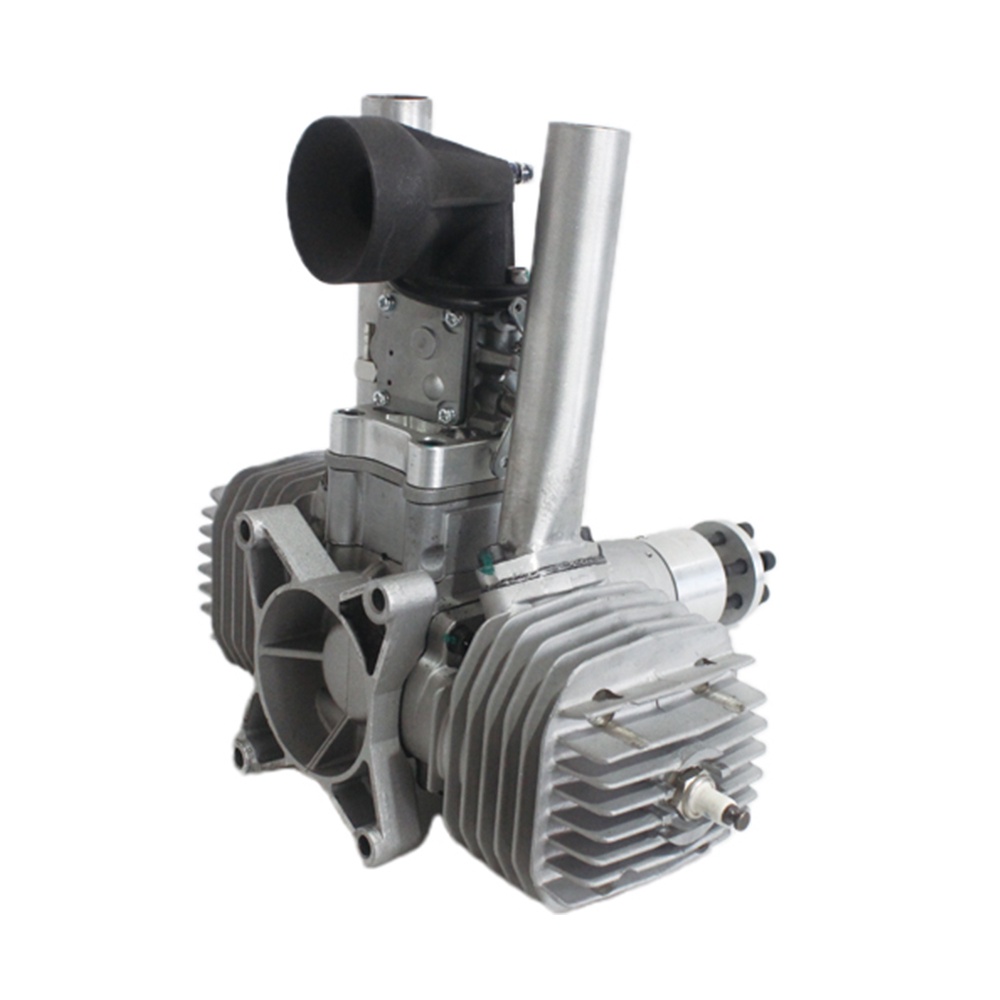

ZT-T120CC 120cc UAV Engine
The ZT-T120CC is a lightweight, high‑power 120cc gasoline engine designed for professional UAV platforms. Available in two configurations:

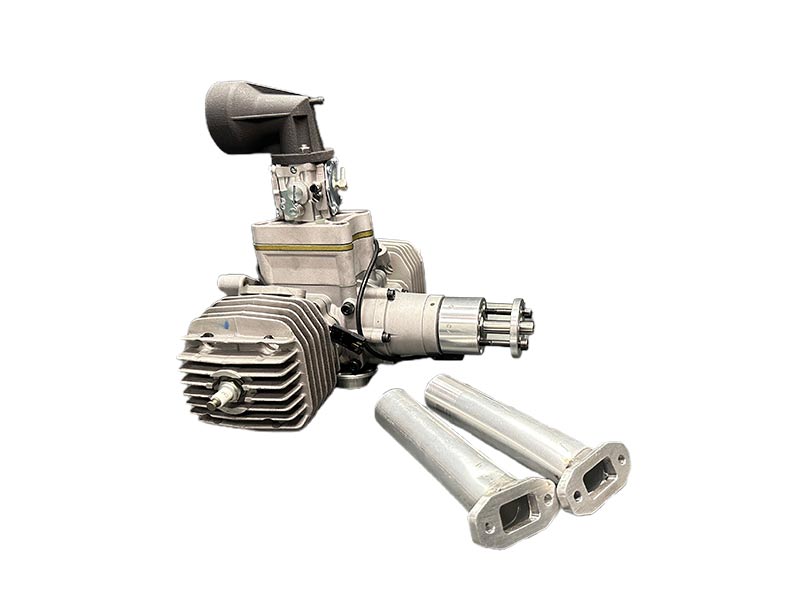

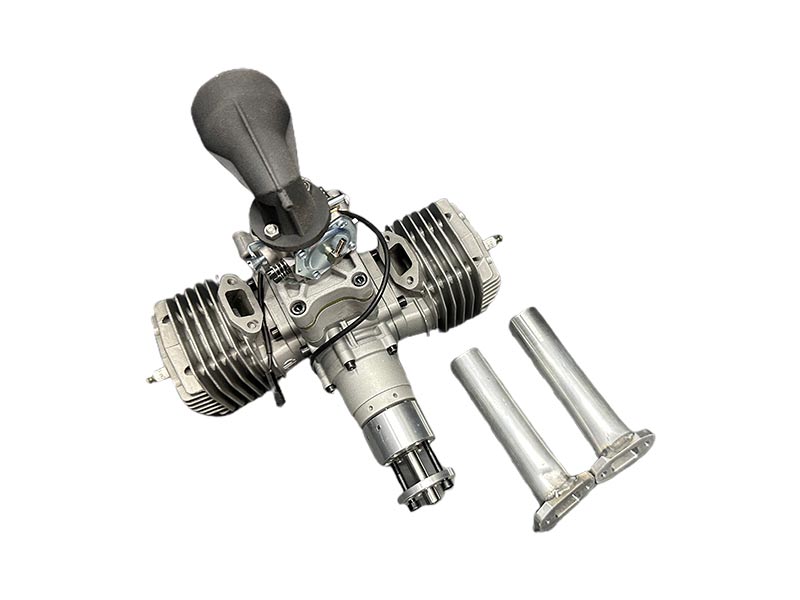

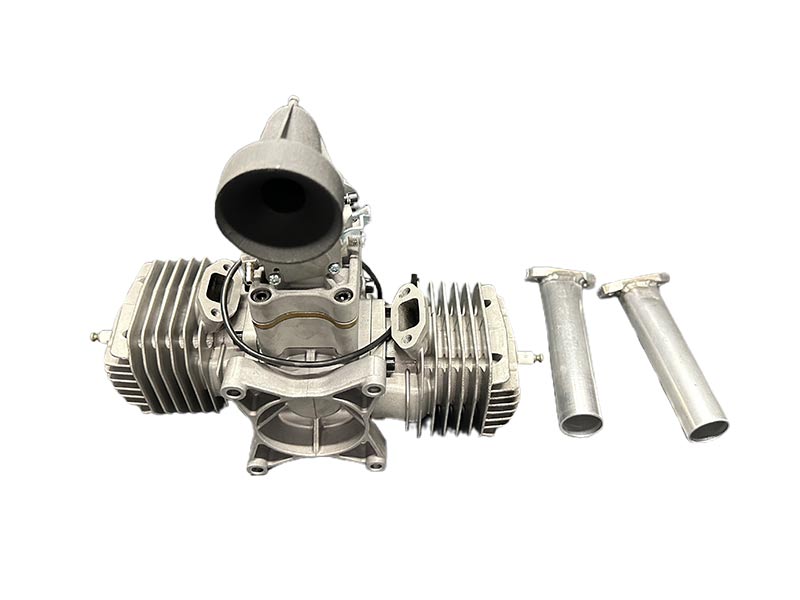

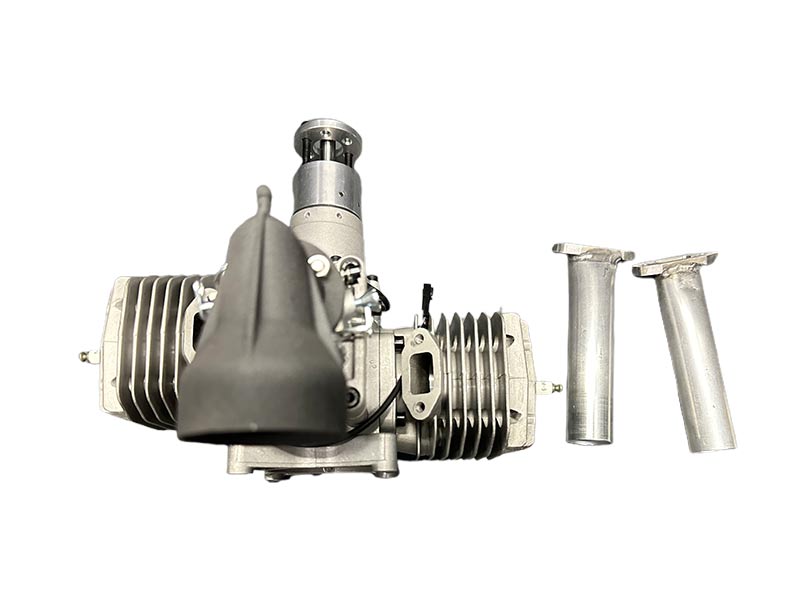

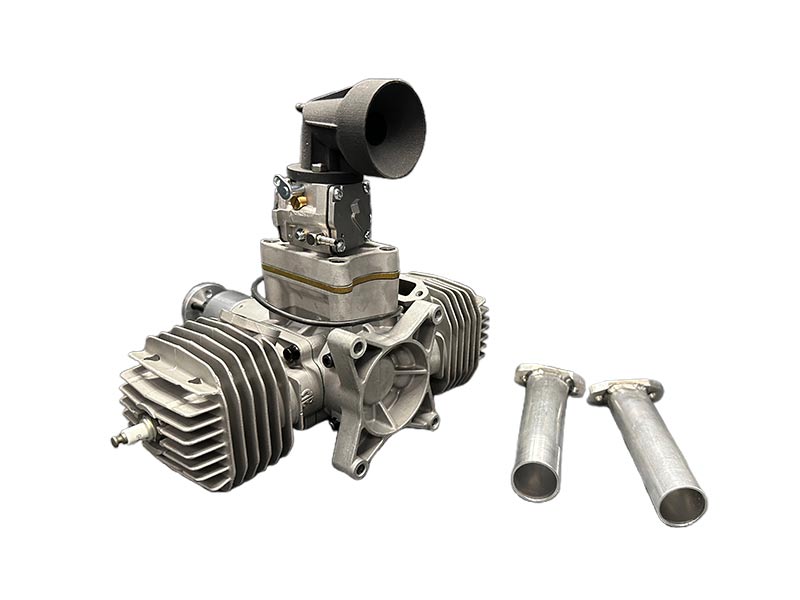

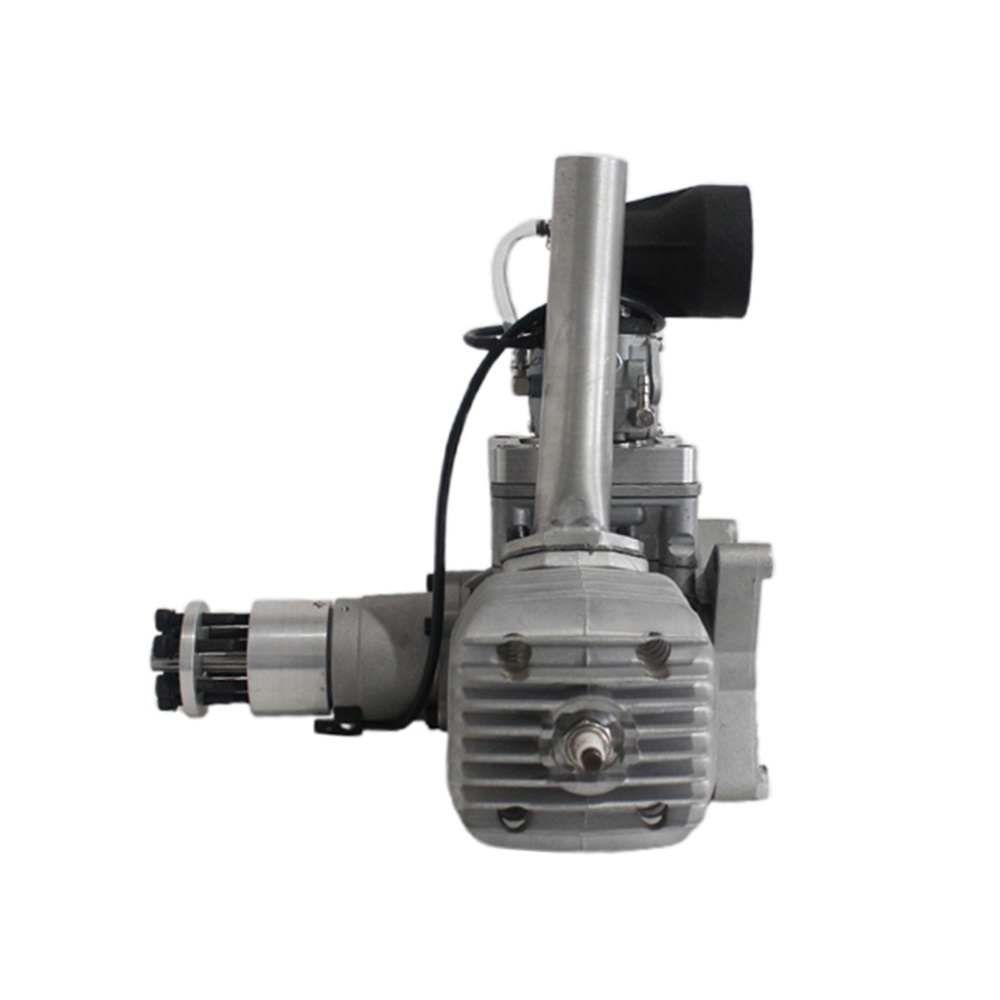

Carburetor Version – Simple, proven, easy to maintain.

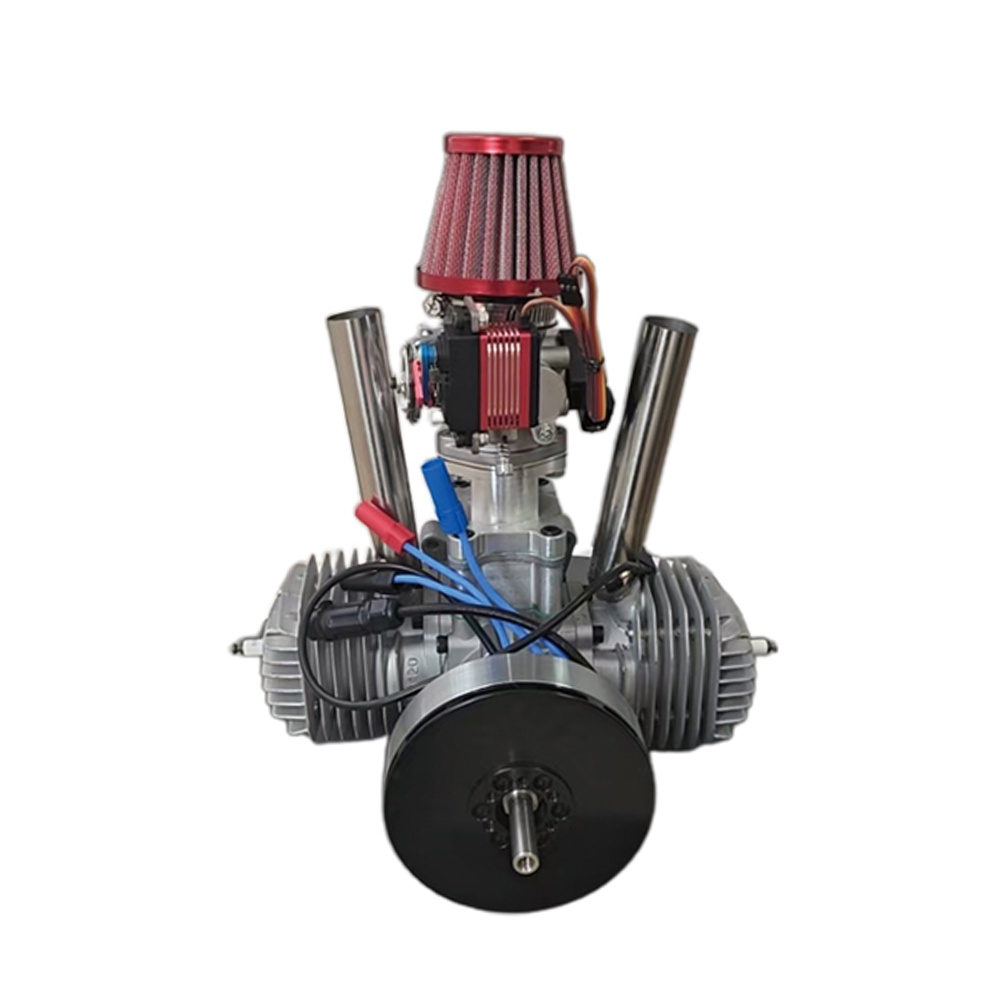

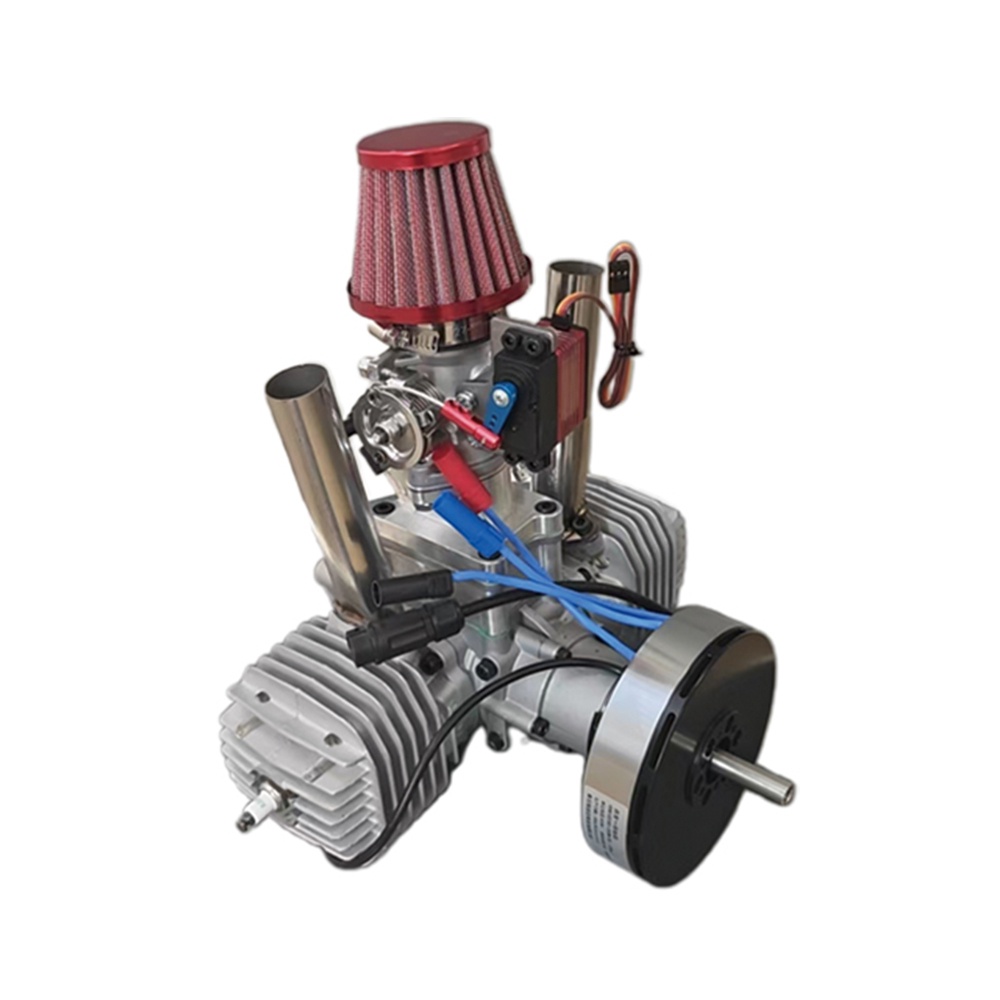

ECU EFI + Integrated Starter‑Generator Version – Electronic Fuel Injection for automatic altitude compensation, plus a built‑in 600W generator to power avionics and payloads.
With up to 26.5kg static thrust and a dry weight of only 3.05kg, it supports maximum take‑off weights of 60kg – perfect for aerial mapping, forest patrol, disaster response, and military reconnaissance.
Carburetor Version – Simple, proven, easy to maintain.
ECU EFI + Integrated Starter‑Generator Version – Electronic Fuel Injection for automatic altitude compensation, plus a built‑in 600W generator to power avionics and payloads.
With up to 26.5kg static thrust and a dry weight of only 3.05kg, it supports maximum take‑off weights of 60kg – perfect for aerial mapping, forest patrol, disaster response, and military reconnaissance.
CONTACT US
Overview
Product Description
High Output – 8.25kW (11.22hp) max power
Strong Static Thrust – 26.5kg @ 100m altitude, 23.5kg @ 1800m altitude
Lightweight – Only 3.05kg (engine only)
Wide Speed Range – 1300–7500 rpm
600W Generator (EFI version) – Powers flight controller, gimbal, and sensors without extra alternator
Low Fuel Consumption (EFI) – 3.3 L/h vs. 4.5 L/h on carburetor (~27% saving)
Aviation‑Grade Construction – Three ball bearing crankshaft, robust ignition (6.0‑8.4V DC)
