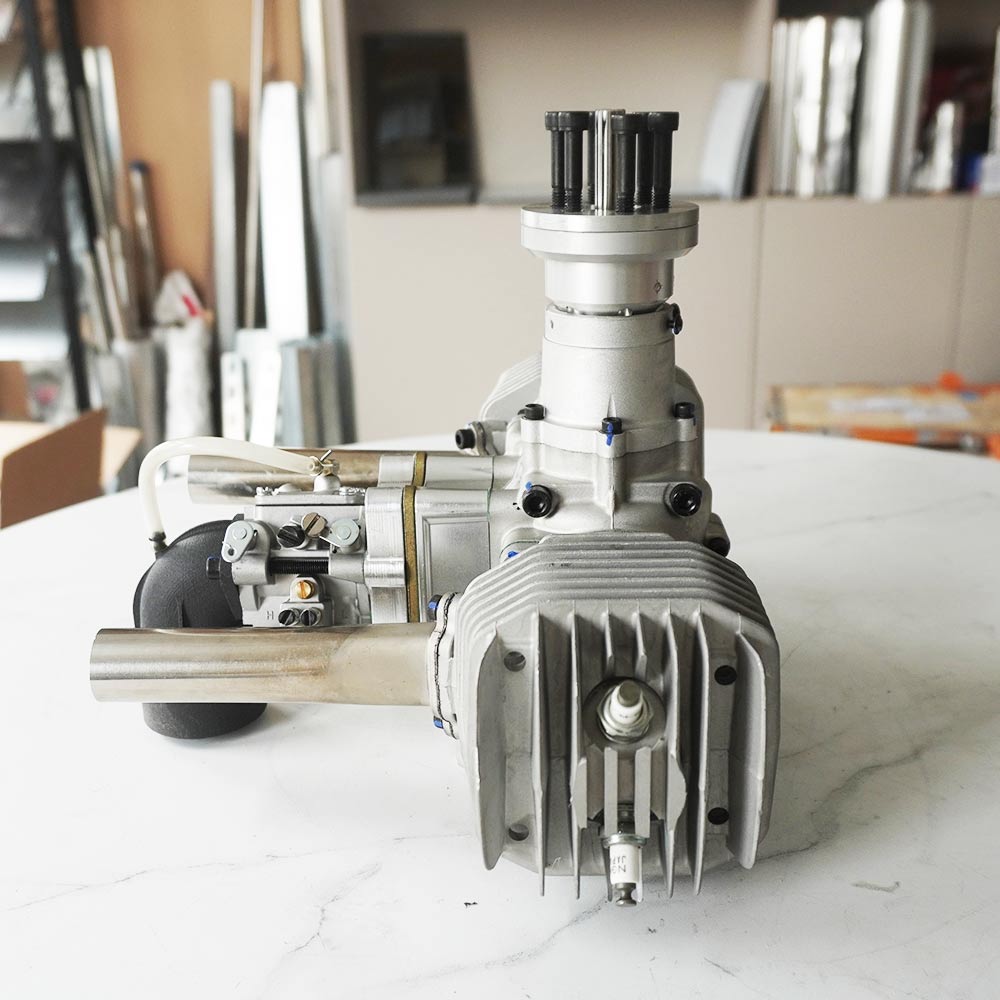

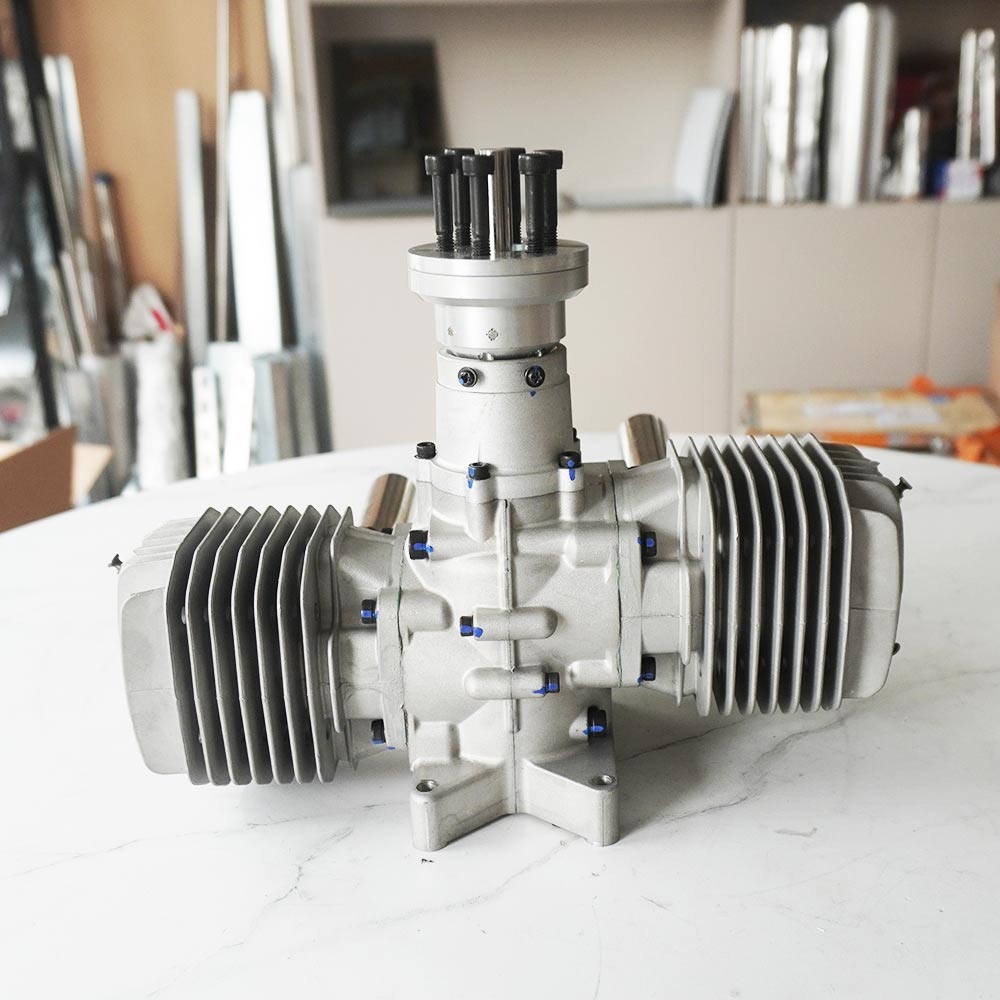

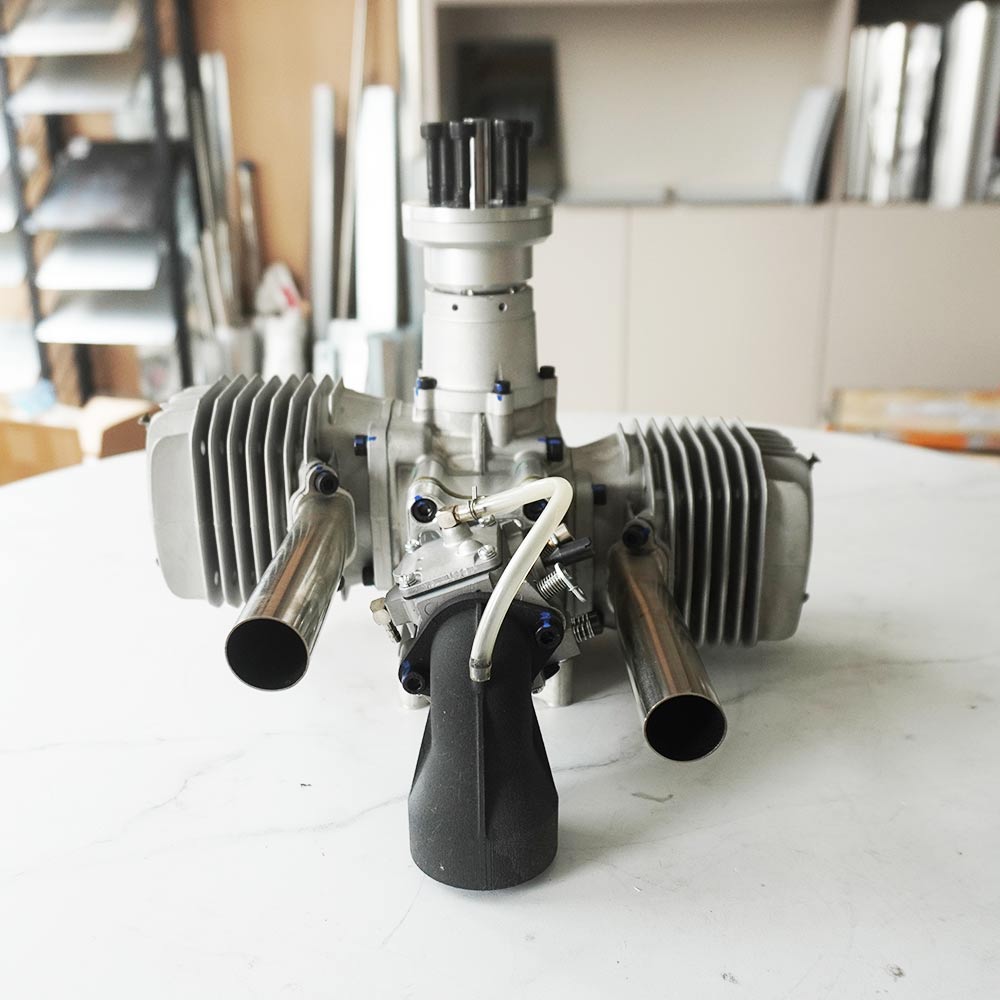

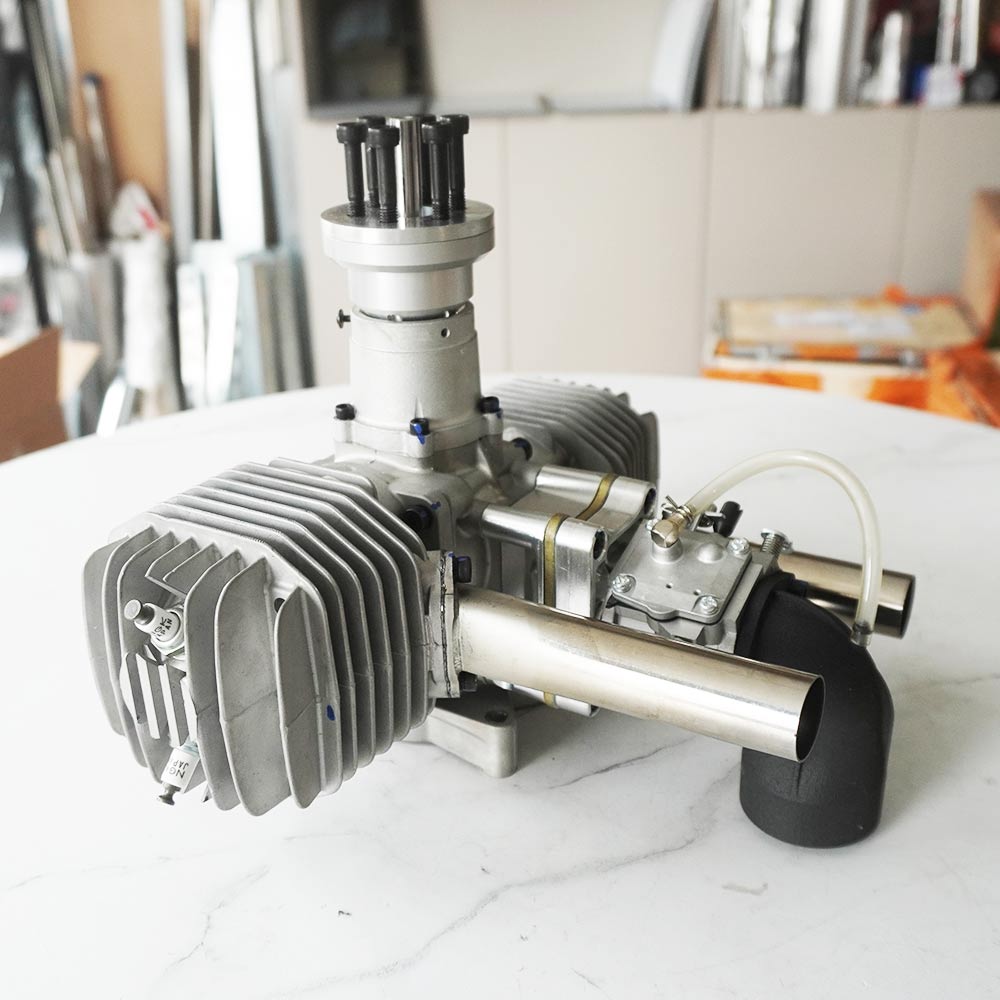

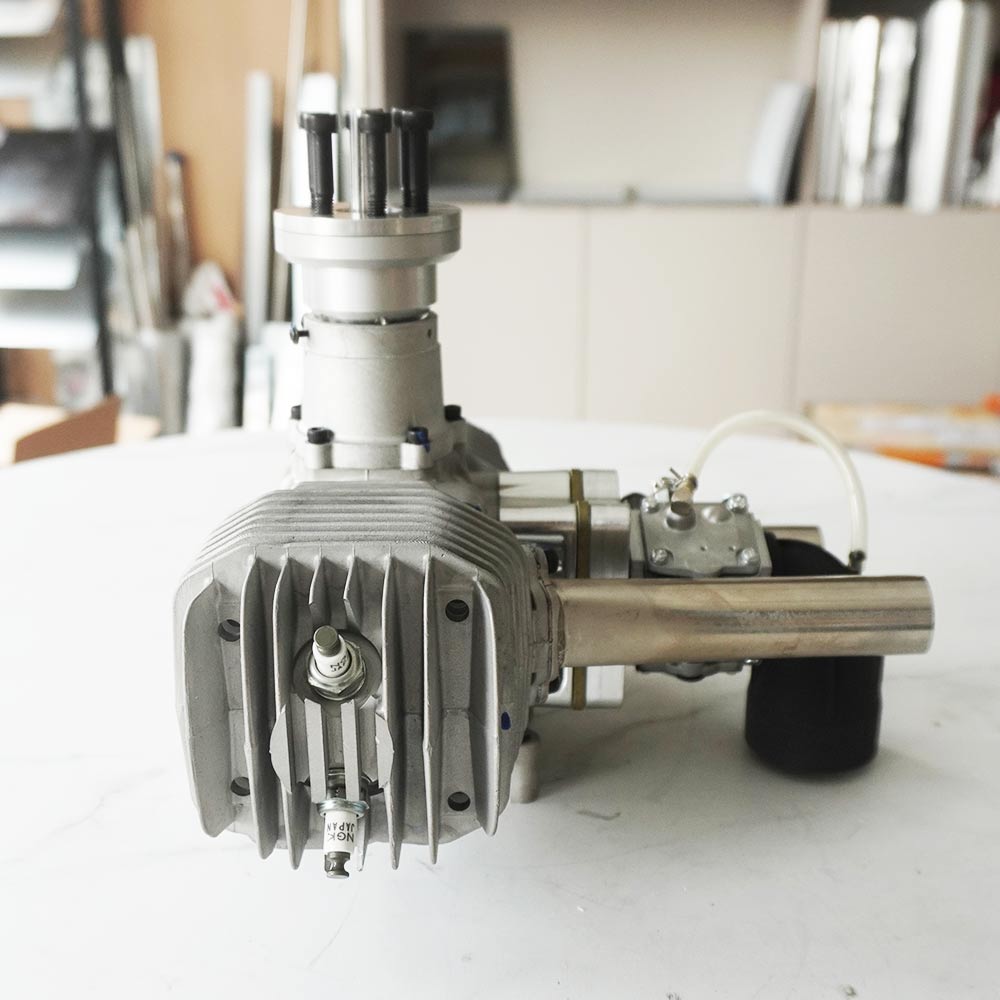

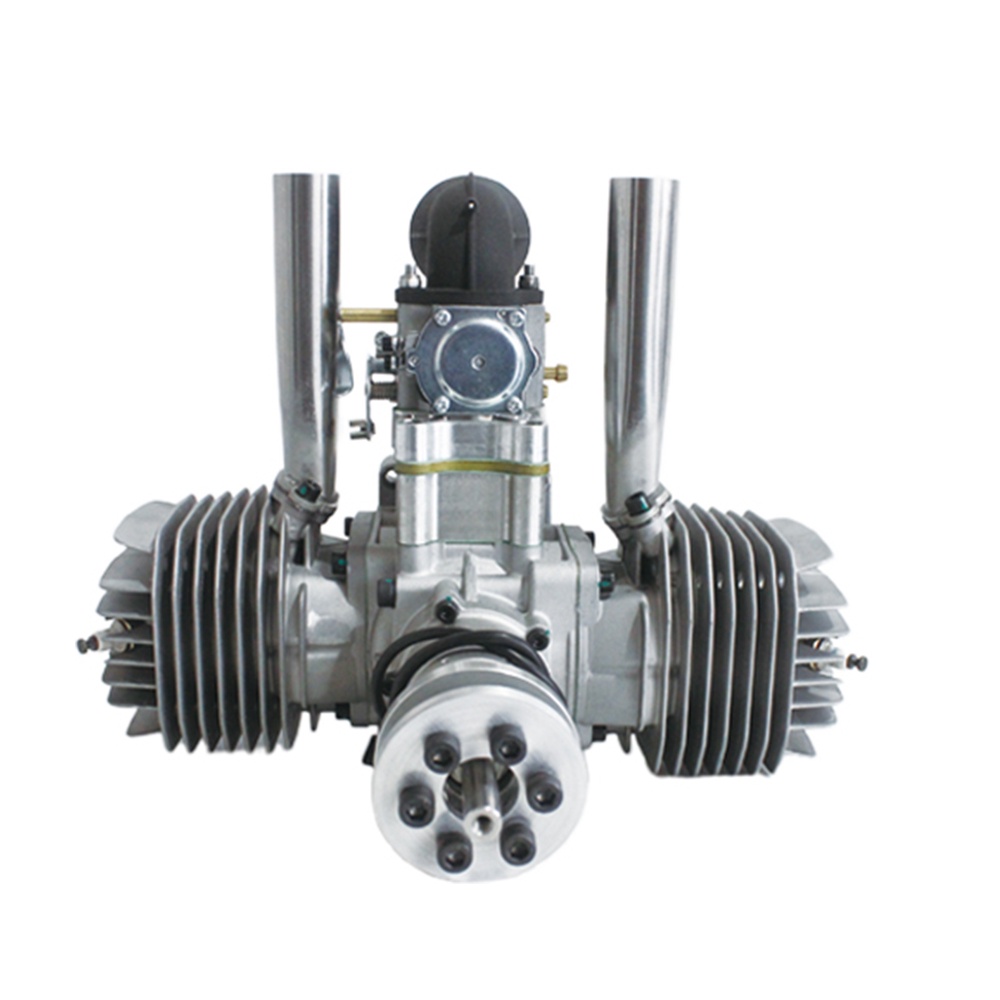

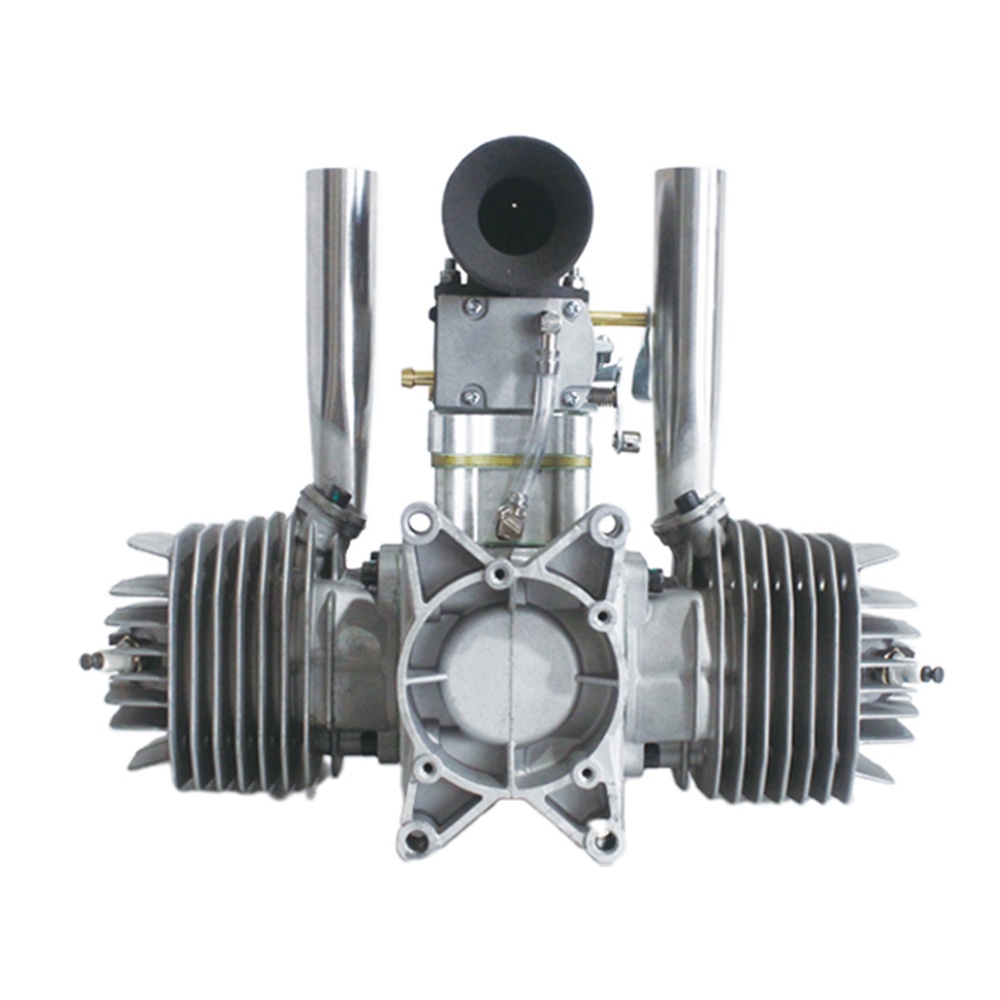

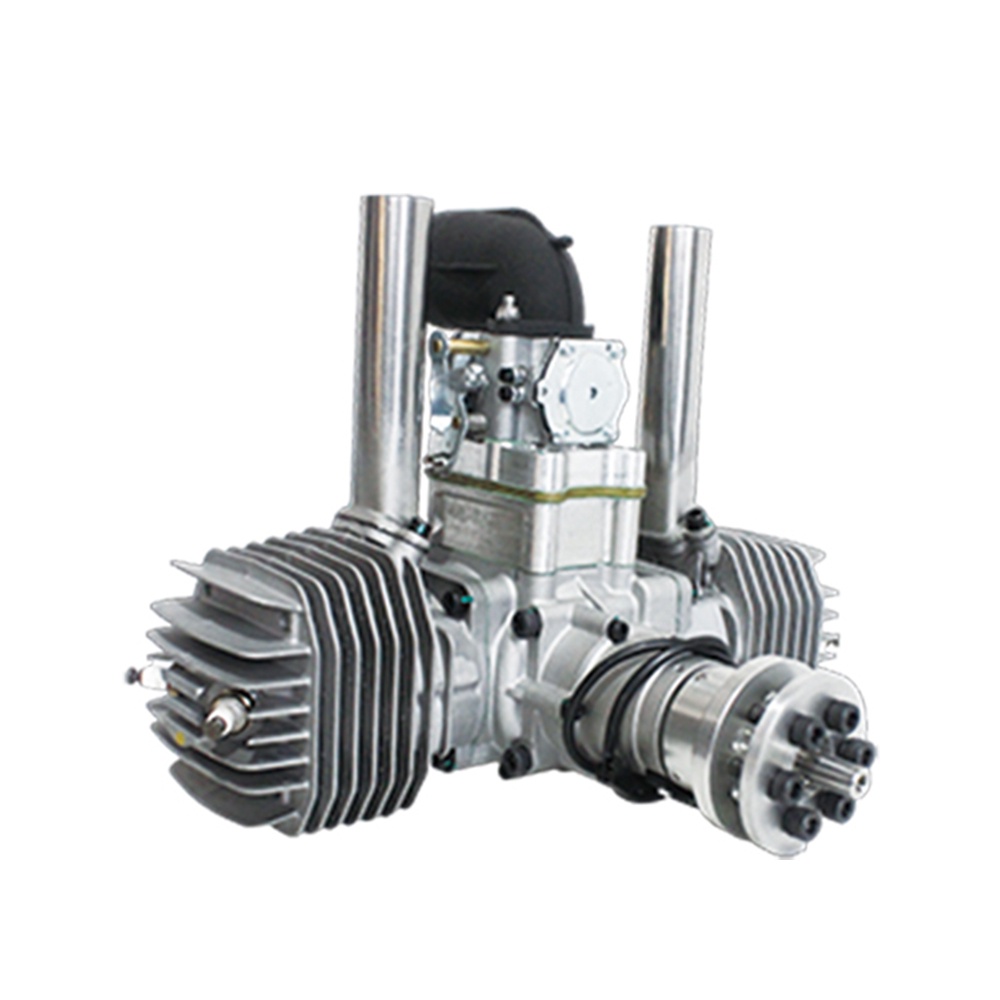

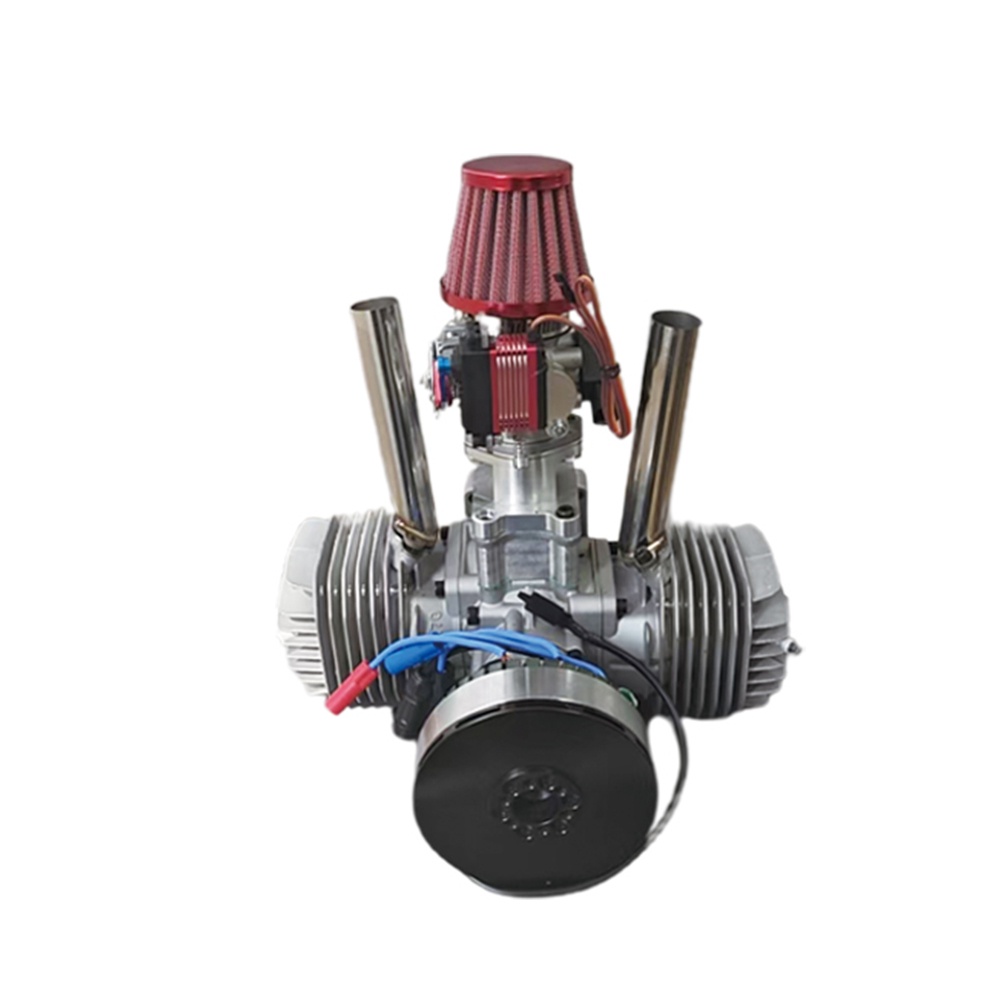

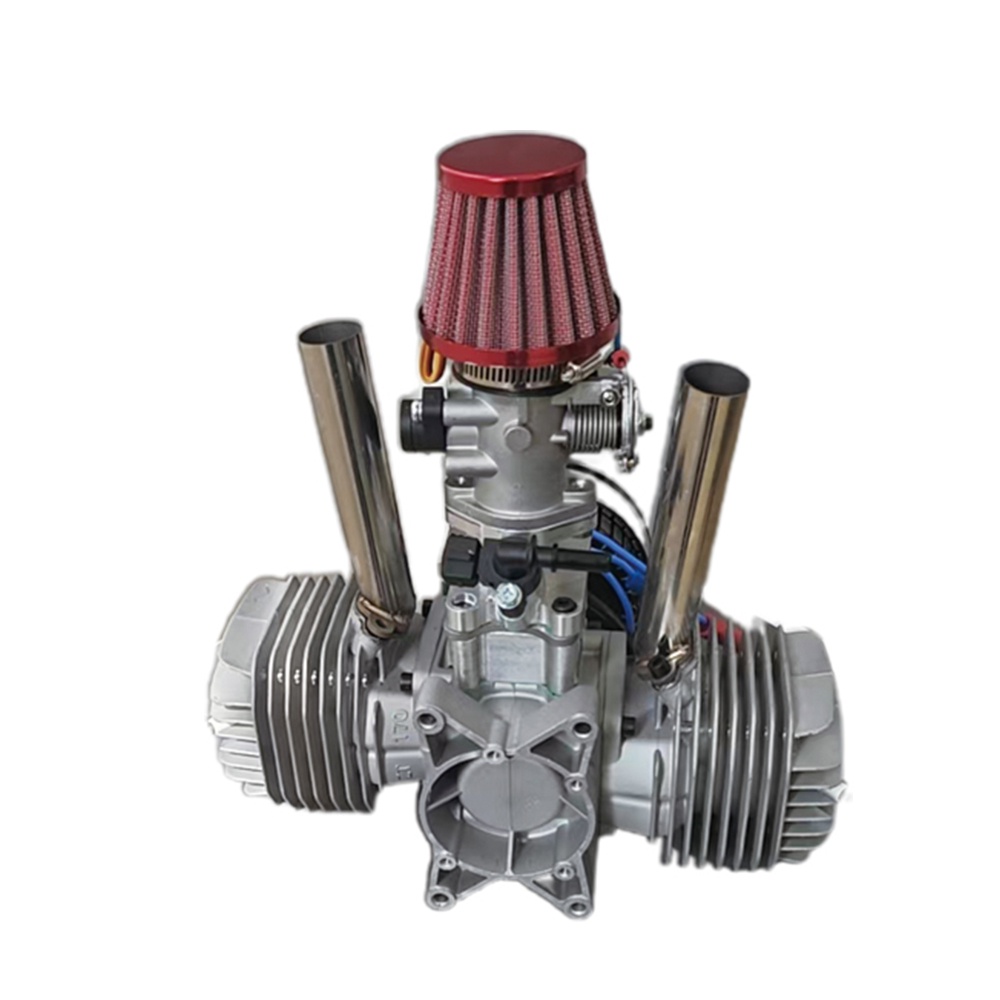

ZT 170cc UAV Engine
The ZT 170cc UAV Engine is designed for large fixed wings and VTOL UAVs. It comes with EFI version with starter and alternator. EFI engine is much more advanced in many aspects, including higher power, oil-saving, low noise, not easy to extinguish, only ignition for one time. The ECU is able to automatically adjust the ignition time, fuel injection volume and idle control according to engine temperature and altitude. Our drone engines can be customized according to your requirements.
CONTACT US

Overview

Product Description


1. Electronic fuel injection system, suitable for high-altitude flight.
2. Self-starting generator, two-in-one, output power 400W/600W.
3. The electrical part uses aviation plugs, which is more solid and reliable.

4. Adopt aviation aluminum materials and high-precision technology.

5. Beautiful appearance, high-precision, drop resistance, fatigue resistance, and strong power performance.

6. Applicable for civilian and military purposes, such as aerial photography, aerial survey, forest inspection, disaster rescue, etc.


Specifications


Performance

17.5HP/7500rpm

Idle Speed

1100 rpm/minute

Static Thrust

35kg/Altitude 100m

Static Thrust

31.5kg/Altitude 1800m

Recommended Propeller

30×12/32×10

Spark Plug Type

NGK CM6

Displacement

170cm³

Diameter×Stroke

52mm×40mm

Compression Ratio

9.5:1

Lubrication Ratio

30:1

Weight of Main Engine

3620g

Weight of Exhaust

470g

Weight of Ignition

190g

Ignition Voltage

4.8V-8.4V
